Specifications

• Length Overall w/ Swim Platform: 24’3” (7.39 m)

• Beam: 8’6” (2.59 m)

• Dry Weight: 5,650 lbs (2,563 kg)

• Fuel Capacity: 50 gal (189 L)

• Ballast Capacity: 1,226 lbs (556 kg)

• Draft Drive Up / Down: 31” / 39” (0.79 m / 0.99 m)

• Bridge Clearance w/ Tower: 98” (2.49 m)

• Bridge Clearance w/o Bimini: 59” (1.50 m)

• Capacity: 13 persons / 2,100 lbs with gear

Structure and Safety

• Kevlar® reinforced hull

• Fiberglass stringer system & cockpit liner

• Composite floor and transom

• 5 ballast tanks for custom surf wakes

• Cruise Control – Zero Off (surf & tow precision)

• Through-prop exhaust

• Dual battery switch w/ ACR

• Circuit breaker protected electrical system

• Stainless steel windshield braces

• Fire extinguishers (manual)

• 10/5/3 Year Warranty Protection

Dash and Instrumentation

• Dual Garmin 743 Glass Cockpit displays (standard)

• Optional dual Volvo 8610 Glass Cockpit upgrade

• Gloss black dash console with stainless switches

• Depth & water temp package

• Digital hour meters

• Illuminated switch panel

• Composite helm eyebrow with custom stitching

• Black leather/stainless steering wheel

• Dual 12V accessory outlets

Entertainment System

• Premium Bluetooth® sound system with 6 speakers

• Stereo remote at dash

• iPod/USB/MP3 port

• Arch-mounted Platinum Sound speaker covers

• Optional Premium Sound with transom & arch speakers

Interior

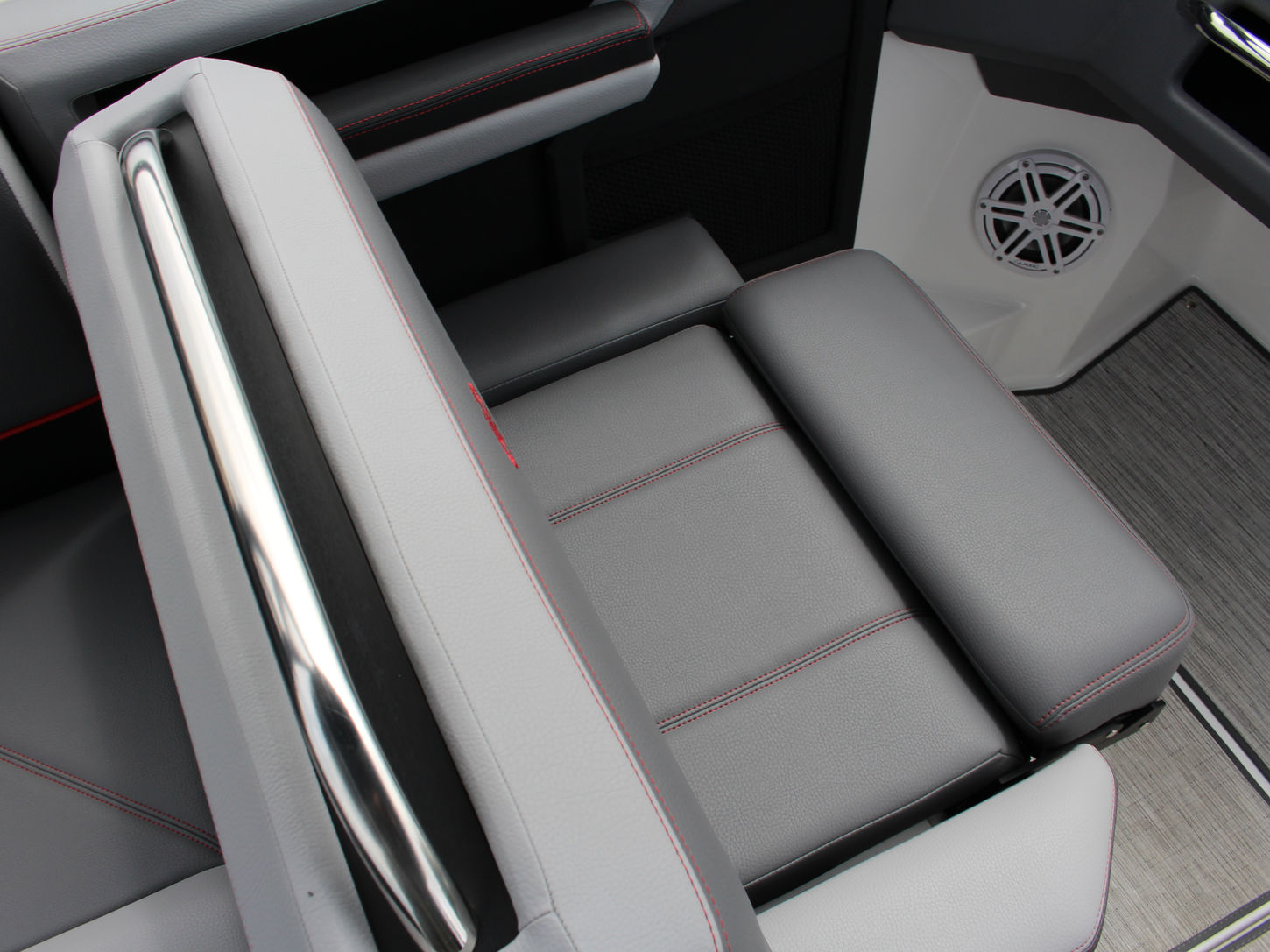

• Varadense® Comfort seating

• Frost/Slate/Red interior upgrade

• Convertible sun lounge

• Aft sunpad with stainless accent rail

• Del Mar captain’s chair at helm

• Passenger flip-backrest seat system

• Bow walk-thru door

• Integrated trash receptacle (3.5 gal)

Exterior

• Obsidian sport black aluminum windshield

• Molded-in gelcoat graphics with KO Red accent

• Zenith-style folding arch with rotating ebony shade (option)

• Anchor locker with stainless scuff plate

• Wakeboard racks (Elite aluminum, standard)

• Stainless steel ski pylon

• Swim platform with flip-down step

• Sof-Trac mats on swim platform and gunwale steps

• Swim platform transom lighting

• Tow balls for surf and tow sports

• Transhield® shipping cover

Installed Options (This Build)

• Electric E2 folding arch with rotating ebony shade

• Dual Volvo Garmin 8610 Glass Cockpit upgrade

• Premium Sound with transom & arch speakers

• Seagrass flooring (Silver Ash)

• Frost/Slate/Red interior package

• Cockpit heater with pull-out vent

• Rear-facing camera

• LED RGB interior accent lighting

• Windlass with all-chain anchor

• Swim platform lighting

• Cockpit tonneau & bow tonneau covers (Ebony)

• Fender clips (4)

• Wireless phone charger/holder

Power and Propulsion

• Engine (this build): Volvo Penta V8-350CE DP w/ Forward Drive (350 HP)

• Stainless steel FWD K4 props

• Closed loop cooling system

• Surf-specific Volvo Forward Drive with surf tabs & ballast integration

Performance (with Volvo Penta V8-350 CE Forward Drive, 350 HP)

• Cruising Speed: ~24–30 mph (efficient for cruising & tow sports)

• Top Speed: ~41–43 mph (light load, optimal conditions)

• Planing Time: ~5 seconds

• Surf Performance: Adjustable ballast and surf tabs create customizable wakes for surfing and wakeboarding

• Range: ~110–130 miles at cruising speed on 50 gal tank
