Specifications

• Length Overall w/ Swim Platform: 23’5” (7.14 m)

• Beam: 8’6” (2.59 m)

• Dry Weight: 4,370 lbs (1,982 kg)

• Fuel Capacity: 60 gal. (227 L)

• Ballast Capacity: 1,244 lbs (564 kg)

• Draft Drive Up / Down: 25” / 38” (0.635 m / 0.965 m)

• Bridge Clearance w/ Arch: 91” (2.31 m)

• Bridge Clearance w/ Bimini: 88” (2.24 m)

• Bridge Clearance w/o Bimini: 53” (1.35 m)

• Deadrise at Transom: 20°

• Certified Capacity: 12 persons / 1,695 lbs with gear

Structure and Safety

• Kevlar® reinforced hull

• Fiberglass stringer system & cockpit liner

• Composite floor, transom, and seat bases

• Extended running surface for smoother performance

• Through-prop exhaust

• Dual battery switch w/ ACR

• Ignition safety switch

• Fire extinguishers (manual)

• Stainless steel windshield braces

• Circuit breaker protected electrical system

• 10/5/3 Year Warranty Protection

Dash and Instrumentation

• Dual Garmin 743 GPS Glass Cockpit displays

• Etched stainless steel instrument panel

• Depth & water temp gauge package

• Digital hour meter

• Stainless steel switches

• Premium black/stainless steering wheel

• Composite helm eyebrow with custom stitching

• USB/USB-C/12V receptacle & charger

• Stainless steel “SURF” emblem

Entertainment System

• Premium Bluetooth® sound system with 6 speakers

• Stereo remote at dash

• Stereo remote at transom (Premium Sound option)

• iPod/USB/MP3 port

• Optional Premium Sound with arch speakers

Interior

• Varadense® Comfort seating in Summit/Frost/White interior

• Bow walk-thru door

• Helm seat with manual slide & flip-up bolster

• Stainless steel drink holders (16 total)

• Trash receptacle

Exterior

• 3-color custom Bayside Blue with KO Red accent stripe

• Zenith folding arch with Ebony bimini & RGB lighting (option)

• Wakeboard racks (Elite aluminum, standard)

• Stainless ski tow eye

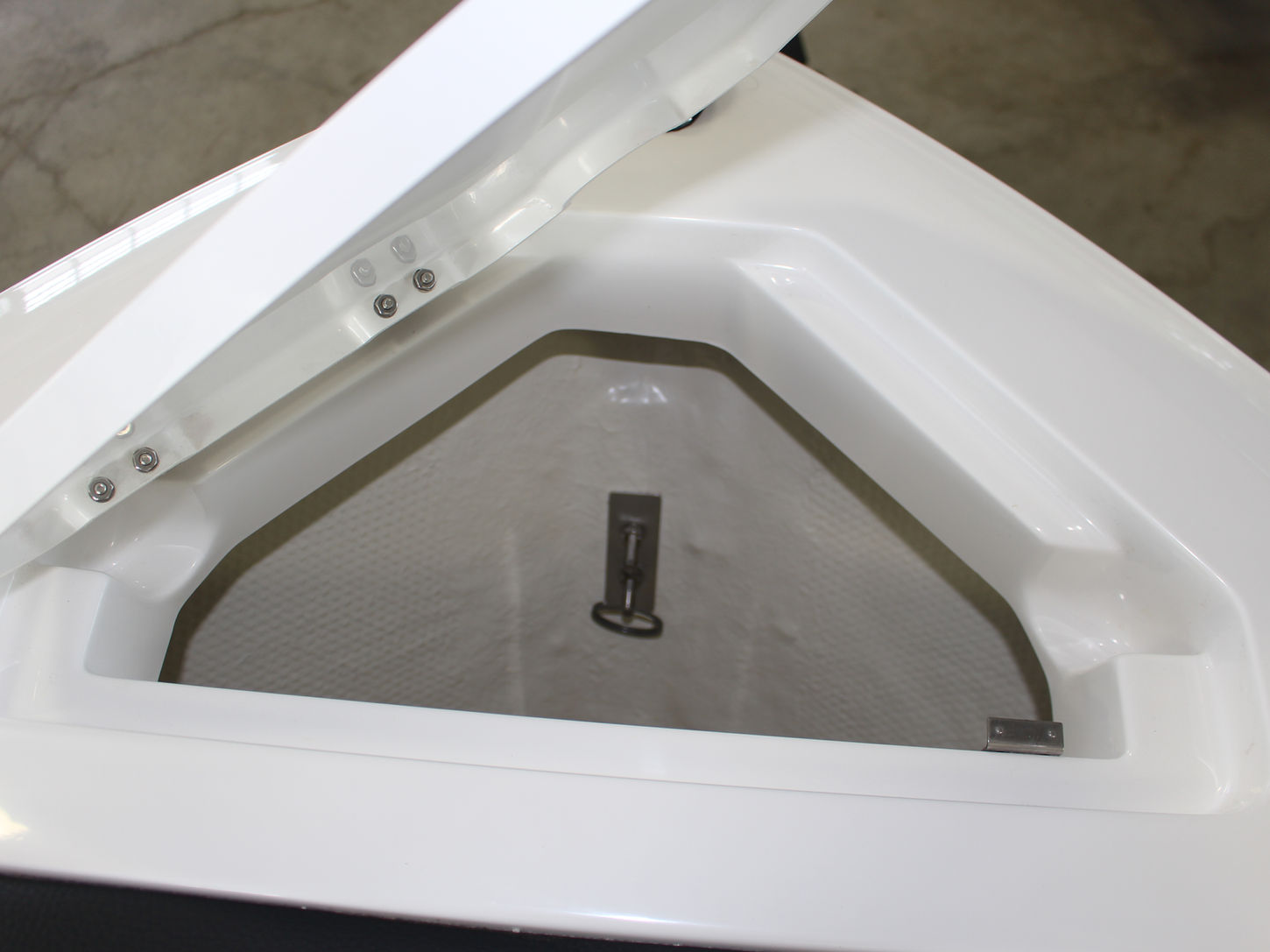

• Stainless bow scuff plate & anchor locker

• Aluminum windshield (Obsidian)

• Swim platform with flip-down step

• Sof-Trac mat on swim platform (Grey/Ebony)

• Swim platform transom lighting

• Molded-in gelcoat graphics

• Surf badging and Surf Gate accents

Installed Options (This Build)

• Premium Sound with arch speakers (Black)

• Zenith black folding tower with RGB and Ebony bimini

• Swim platform with flip-down step

• Sof-Trac mat (swim platform with step, Grey/Ebony)

• Swim platform transom lighting

• Seagrass flooring in Silver Ash

• LED RGB interior accent lighting

• Wireless phone charger/holder

• Docking lights (stainless steel)

• Fender clips with storage tub

• Air compressor with holder

• Ebony bow & cockpit tonneau covers

Power and Propulsion

• Engine (this build): Volvo Penta V8-300CE DP with Forward Drive (300 HP)

• Stainless steel FWD K3 props

• Closed loop cooling system

• Surf-optimized propulsion with ballast integration

Performance (with Volvo Penta V8-300 CE Forward Drive, 300 HP)

• Cruising Speed: ~24–30 mph (ideal for cruising and towing)

• Top Speed: ~41–44 mph (light load, optimal conditions)

• Planing Time: ~5 seconds

• Surf Performance: 1,244 lbs ballast + Forward Drive + Surf Gate create clean, customizable surf waves

• Range: ~120–140 miles at cruising speed on full 60 gal. tank
