Specifications

• Length Overall w/ Swim Platform: 23’5” (7.14 m)

• Beam: 8’6” (2.59 m)

• Dry Weight: 4,000 lbs (1,814 kg)

• Fuel Capacity: 60 gal (227 L)

• Draft Drive Up / Down: 24” / 37” (0.61 m / 0.94 m)

• Bridge Clearance w/ Arch: 91” (2.31 m)

• Bridge Clearance w/ Bimini: 88” (2.24 m)

• Bridge Clearance w/o Bimini: 53” (1.35 m)

• Deadrise at Transom: 20°

• Capacity: 12 persons / 1,695 lbs with gear

Structure and Safety

• Kevlar® reinforced hull

• Fiberglass stringer system

• Composite transom, seat bases, and floor

• Extended running surface for smooth performance

• Stainless steel windshield braces

• Through-prop exhaust

• Ignition safety switch

• Fire extinguisher(s), manual

• Battery switch (single)

• Circuit breaker protected electrical system

• 10/5/3 Year Warranty Protection

Dash and Instrumentation

• Premium black/stainless steering wheel

• Stainless steel switches

• Etched stainless steel instrument panel

• Digital hour meter

• Depth & water temp gauge package

• Composite helm eyebrow with custom stitching

• USB/USB-C/12V receptacle & charger

• Stainless steel Cobalt emblem

Entertainment System

• Bluetooth® sound system with 6 speakers

• iPod/USB/MP3 port

• Stereo remote at dash

• Stereo remote at transom (Premium Sound option)

Interior

• Varadense® Comfort seating

• Summit/Frost interior (standard)

• Helm seat with flip-up bolster and sliding adjustment

• Bow walk-thru door

• Trash receptacle

• Stainless steel drink holders (16 total)

Exterior

• 3-color custom Bayside Blue with Rich Ebony accent stripe

• Stainless steel ski tow eye

• Stainless bow scuff plate & anchor locker

• Stainless steel cleats – bow, midship, stern

• Obsidian aluminum windshield

• Swim platform with flip-down step (option)

• Sof-Trac mat on swim platform (grey/ebony)

• Swim platform transom lighting

• Zenith black folding tower with ebony bimini top

• Molded-in gelcoat graphics

• Transhield® shipping cover

Installed Options (This Build)

• Zenith tower (folding, black) with ebony bimini top

• Swim platform with flip-down step

• Sof-Trac mat (swim platform with step, grey/ebony)

• Swim platform transom lighting

• Seagrass flooring in Silver Ash

• Bow & cockpit tonneau covers (Ebony)

• Docking lights (stainless steel)

• Wireless phone charger/holder

• Air compressor with holder

• Black satin COBALT lettering

Power and Propulsion

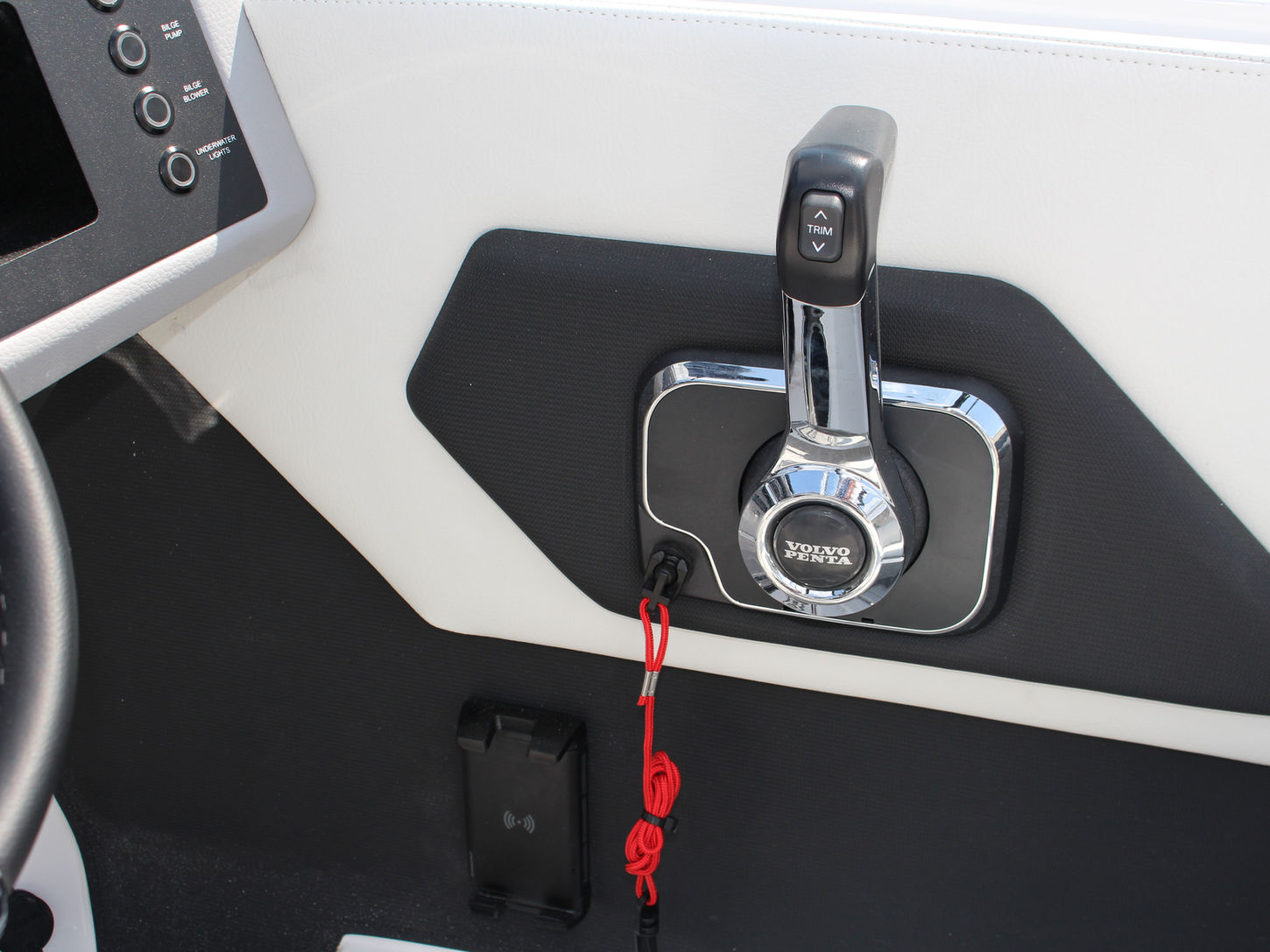

• Engine (this build): Volvo Penta V6-280C DP w/ Closed Loop Cooling (280 HP)

• Stainless steel FH4 props

• Sterndrive propulsion

Performance (with Volvo Penta V6-280, 280 HP)

• Cruising Speed: ~25–32 mph (ideal for family cruising and watersports)

• Top Speed: ~40–42 mph (light load, optimal conditions)

• Planing Time: ~5 seconds

• Range: ~120–140 miles at cruising speed on a full 60 gal tank
