Specifications

• Length Overall w/ Swim Platform: 25’9” (7.85 m)

• Beam: 8’6” (2.59 m)

• Dry Weight: 5,800 lbs. (2,631 kg)

• Fuel Capacity: 60 gal. (227 L)

• Freshwater Capacity: 10 gal. (38 L)

• Draft Drive Up / Down: 19” / 35.5” (0.48 m / 0.90 m)

• Bridge Clearance w/ Arch: 100” (2.54 m)

• Bridge Clearance w/o Bimini: 61” (1.55 m)

• Interior Cockpit Width: 95” (2.41 m)

• Deadrise at Transom: 20–21° (R-Series design)

• Capacity: 14 persons / 2,300 lbs with gear

Structure and Safety

• Kevlar® reinforced hull

• Fiberglass stringer system and cockpit liner

• Composite floor, seat bases, and transom

• Through-prop exhaust

• Stainless steel windshield braces

• Dual battery switch w/ ACR

• Ignition safety switch & manual fire extinguishers

• Circuit breaker protected electrical system

• 10/5/3 Year Warranty Protection

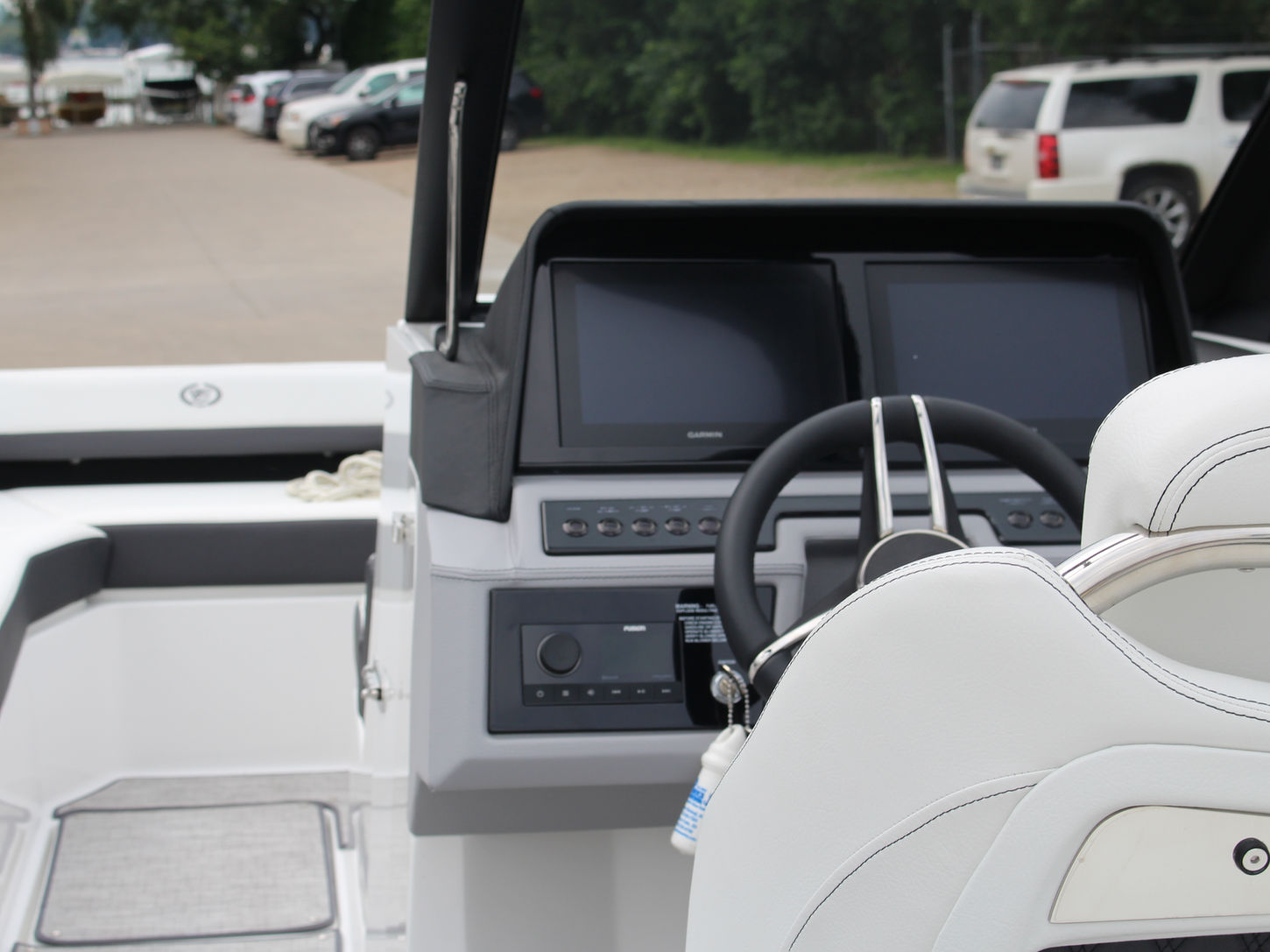

Dash and Instrumentation

• Black leather & stainless steering wheel

• Gloss black dash console with stainless switches

• Dual Garmin 743 Glass Cockpit multifunction displays (standard)

• Optional dual Garmin 8610 Glass Cockpit upgrade

• Illuminated switch panel

• Digital hour meter(s)

• Depth & water temperature package

• Composite helm eyebrow with custom stitching

• Dual 12V accessory plugs

Entertainment System

• Premium Bluetooth® sound system with 6 speakers

• Stereo remote at dash

• Arch-mounted platinum sound speaker covers

• iPod/USB/MP3 port

• Optional Premium Sound with transom speakers & remote

Interior

• Varadense® Comfort seating with Summit/Frost interior

• Convertible sun lounge with three positions

• Aft-facing rumble seat

• Passenger seat flip-backrest system

• Del Mar captain’s chair at helm

• Bow walk-thru door

• Integrated trash receptacle (3.5 gal)

• Dash storage pocket

• Aft sunpad backrest w/ stainless accent rail

• Portable 36 qt. removable cooler

• Head compartment with Porta Potti

Exterior

• Obsidian windshield with stainless accents

• Molded-in gelcoat graphics with KO Red accent stripe

• Anchor locker with stainless bow scuff plate

• Stainless steel ski pylon

• Stainless tubular swim platform perimeter rail

• Swim platform with flip-down step (standard)

• Optional Sof-Trac mat (swim platform and gunwale step)

• LED model designator on transom

• Stainless steel engine vents

• Midship cleats

• Fender clips w/ lines (4)

• Transhield® shipping cover

Installed Options (This Build)

• Electric E2 folding arch with ebony bimini

• Dual Garmin 8610 Glass Cockpit upgrade

• Premium Sound w/ transom speakers & remote

• Windlass w/ all-chain anchor

• Seagrass flooring in Silver Ash

• Sof-Trac mats (swim platform & gunwale step)

• LED RGB interior accent lighting

• Swim platform transom lighting

• Flagpole with flag

• Wireless phone charger/holder

• Hull bottom in Rich Ebony

• KO Red accent stripe

Power and Propulsion

• Engine (this build): Volvo Penta V8-300CE DP (300 HP)

• Stainless steel FH4 props (Volvo)

• Closed loop cooling system

• Sterndrive propulsion with smooth, reliable power for cruising and watersports

Performance (with Volvo Penta V8-300 CE, 300 HP)

• Cruising Speed: 28–32 mph (efficient, comfortable ride)

• Top Speed: 47–50 mph (light load, ideal conditions)

• Planing Time: ~5 seconds

• Range: ~130–150 miles at cruising speed on full 60 gal tank
